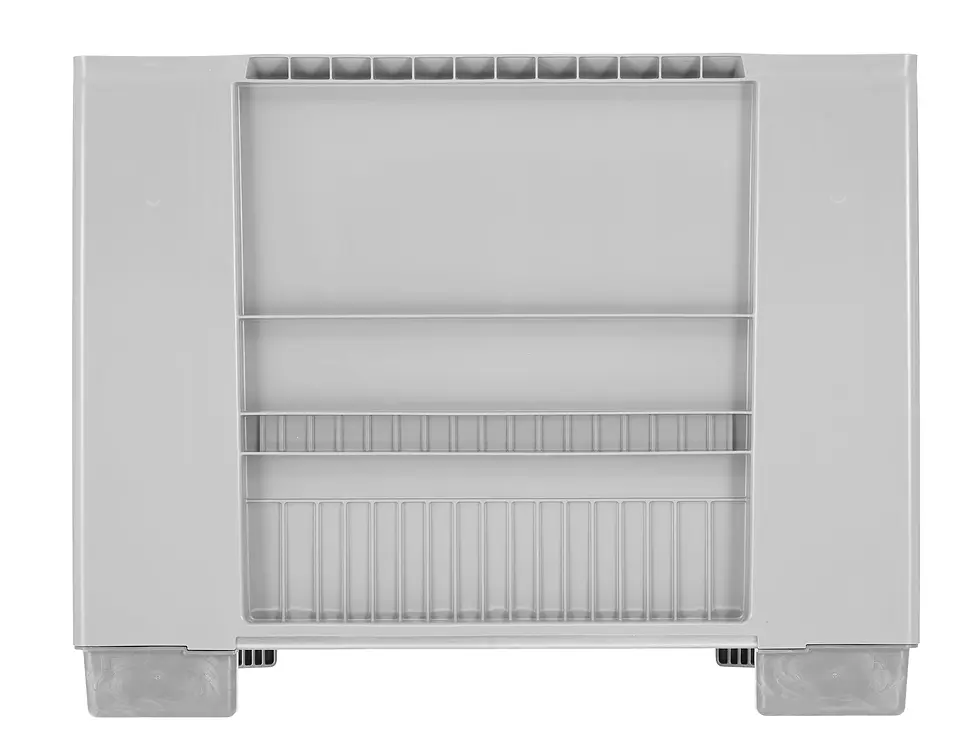

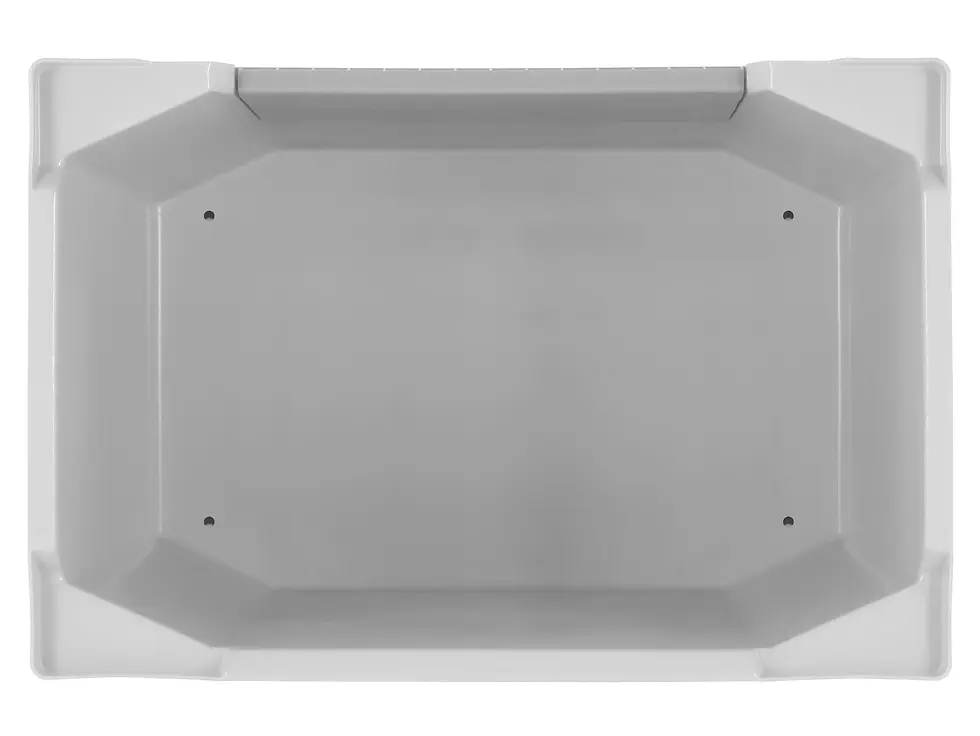

The KUBO is the markets first plastic alternative to the Europool-DB-Europool grid box (Gitterbox) and ideally suited for heavy goods and components, and generally for all applications with high requirements. The new Craemer box made of high-quality PE and impresses with a solid and robust construction, whilst having the advantage of a low tare weight. The KUBO runs maintenance- and trouble-free on all conventional conveyor systems and high rack warehouses, making this repairable pallet box ideal for pooling applications. Its design makes emptying, cleaning, and drying of the corrosion-free KUBO easy and straightforward. Due to its closed walls, the box offers maximum protection of the contents and boasts enormous stability and excellent stackability. The KUBO is equipped with steel reinforcements in the base, which makes it particularly well suited for heavy loads. L-shaped steel profiles on the long sides of the four-way box ensure – in addition to the additional ribs above the entry openings – increased impact protection against forklift tines.

Characteristics:
Body injection-moulded in one piece
Large front drop door on the long side for easy loading and unloading
Four exchangeable corner columns along the entire height reinforce the container
Resistant to forklift tines thanks to ram protection through ribs and steel L-profiles on the sides
Five steel profiles in the base ensure high stability even under heavy loads
External dimensions compatible with the metal grid box (Gitterbox) enable use in existing systems
Smooth interior walls for easy emptying and cleaning
Each corner is provided with one closed 10 mm floor drain port with drilling mark
Runs maintenance- and trouble-free on all conventional conveyor systems
Suitable for automated high rack warehouses
Temperature resistant from -30 to +40 degrees Celsius, briefly up to +90 degrees, resistant to most chemicals and cleaning agents
Stippled area for temporary adhesive labels
External dimensions based on UIC 435-3

Options:
One open 10 mm floor drain port at each corner
RFID Transponder
Closed walls without front drop door
Individual printing
Documents holder on the drop door
